SVG

The following slide deck was assembled using

reveal.js and actual SVG

by the guy standing and talking right now

art tech web
640 480 Then…

Now:

And yet…

<img/>

Art direction example via Jason Grigsby, frame photo by Stephen Clulow

Search icon in PNG format Search

So we got creative…

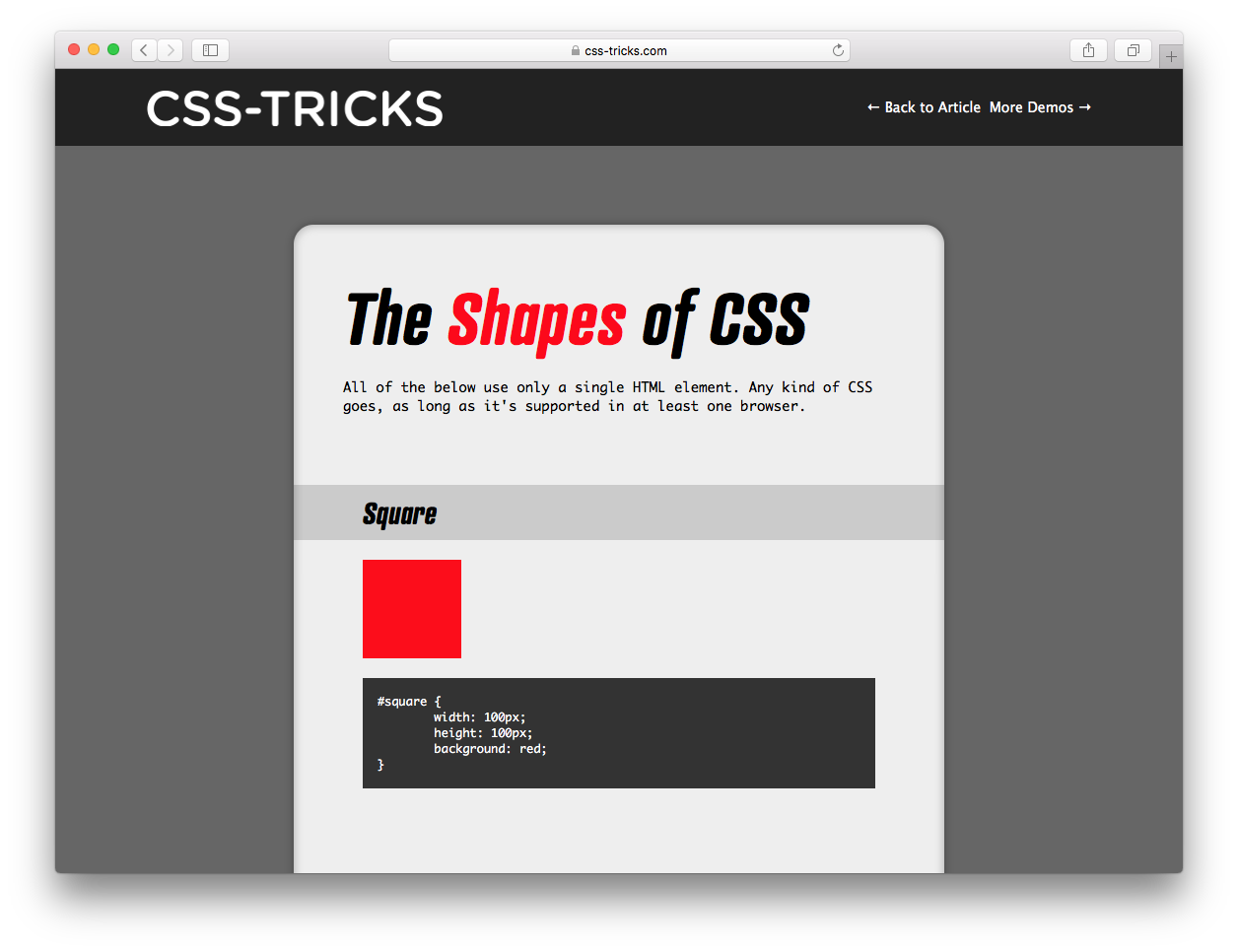

Screenshot from the Shapes of CSS page on CSS-Tricks
Screenshot from the Shapes of CSS page on CSS-Tricks

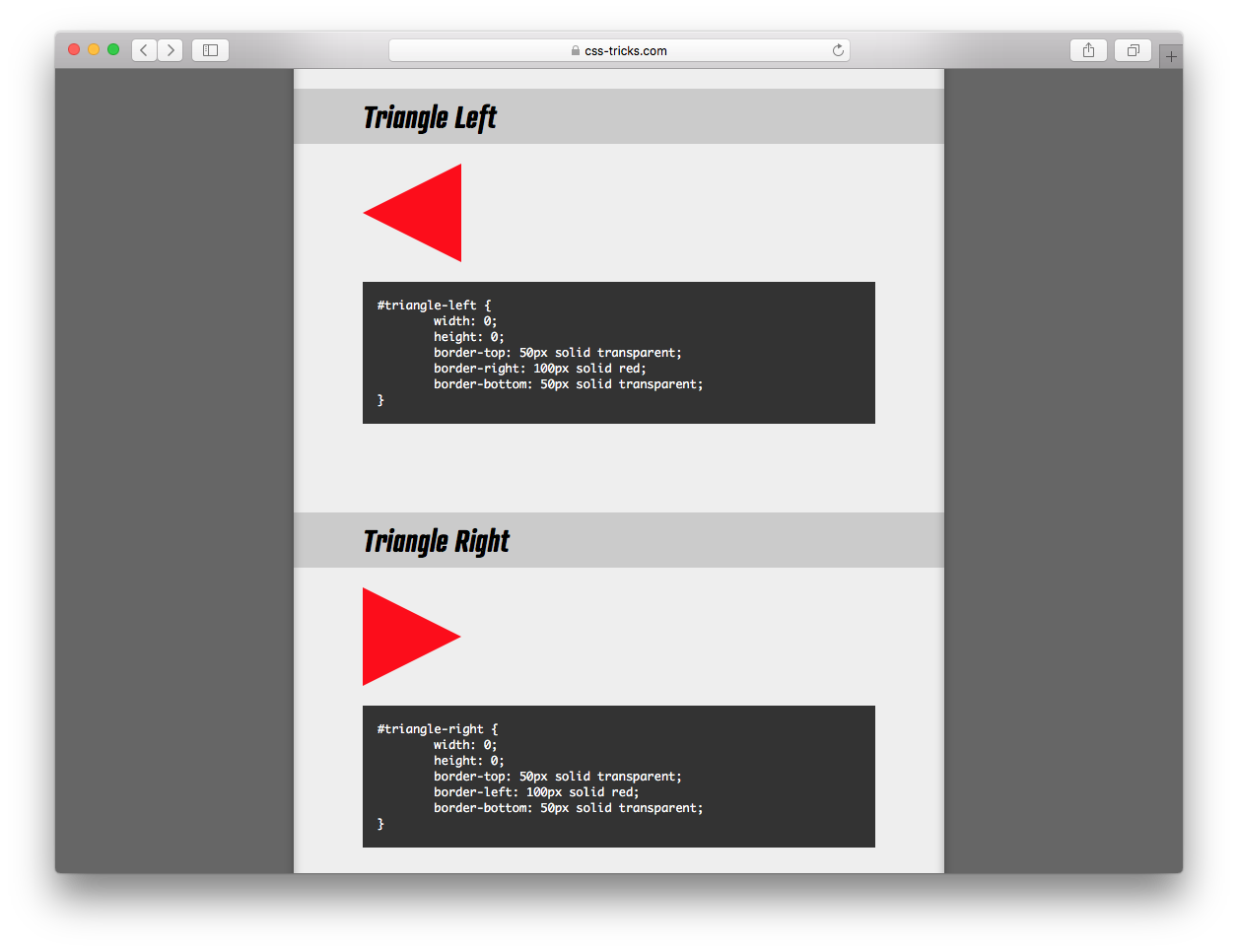

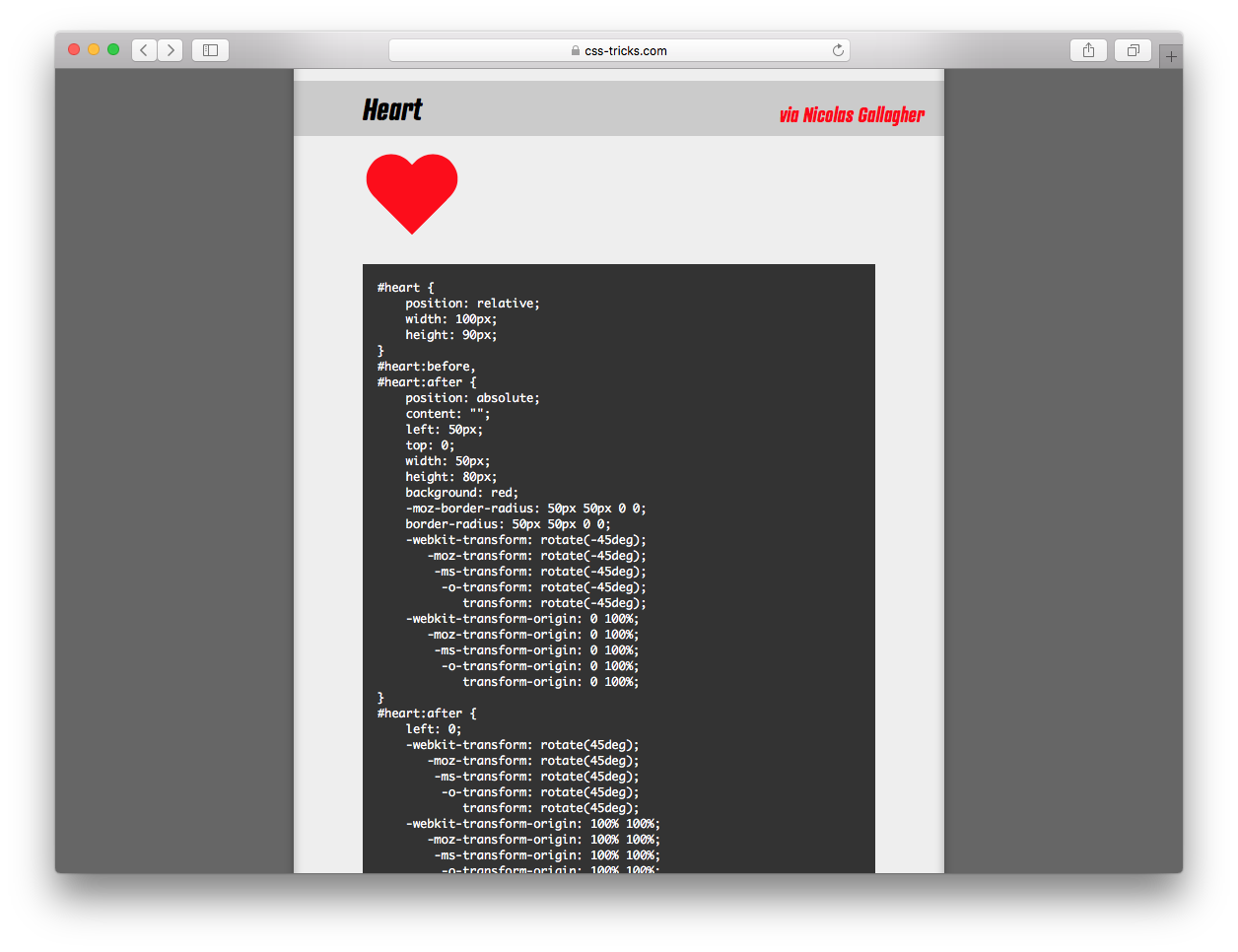

Screenshot from the Shapes of CSS page on CSS-Tricks

Icon Fonts

Screenshot from John Hicks' icon fonts article for 24 Ways

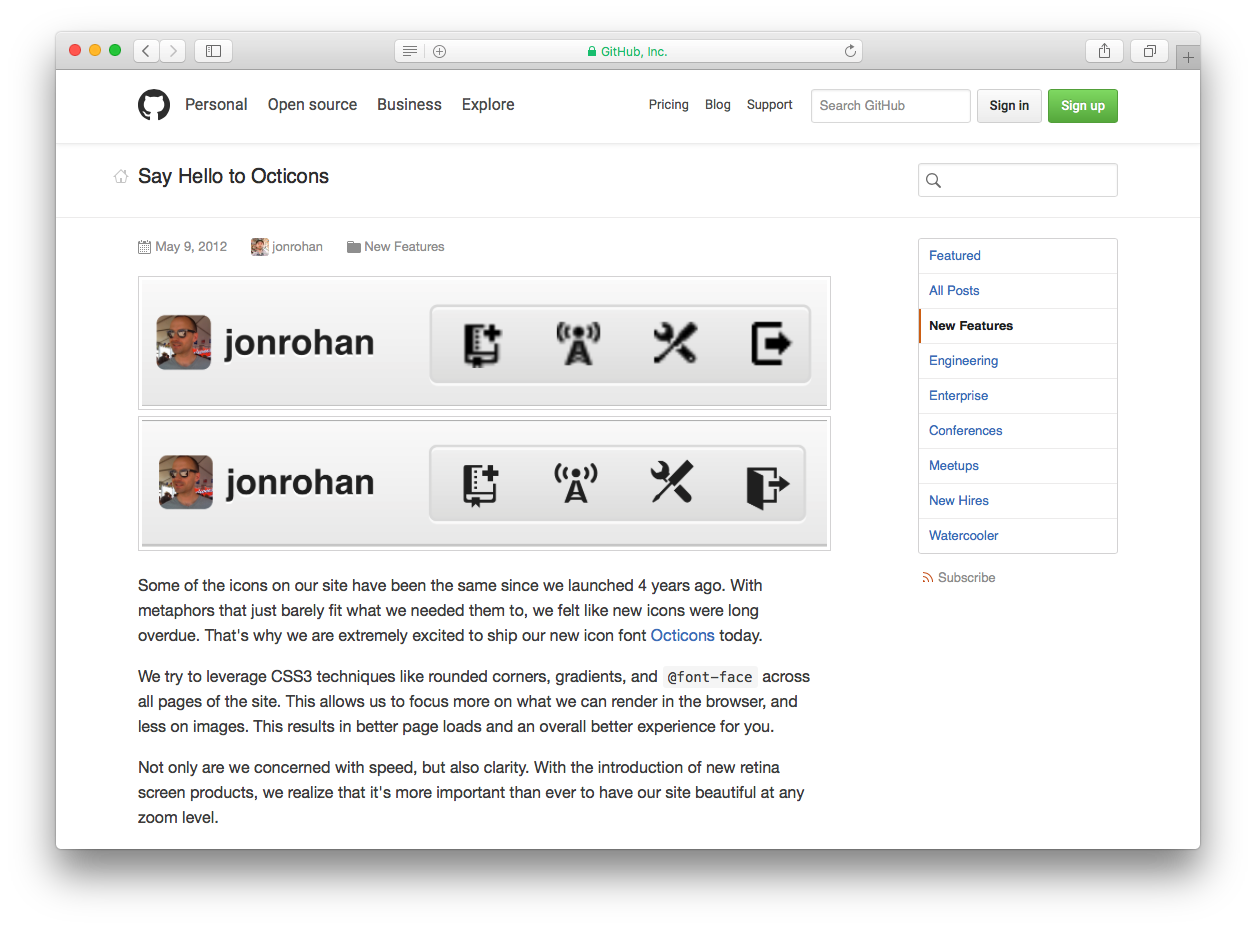

Screenshot from GitHub's blog post introducing Octicons

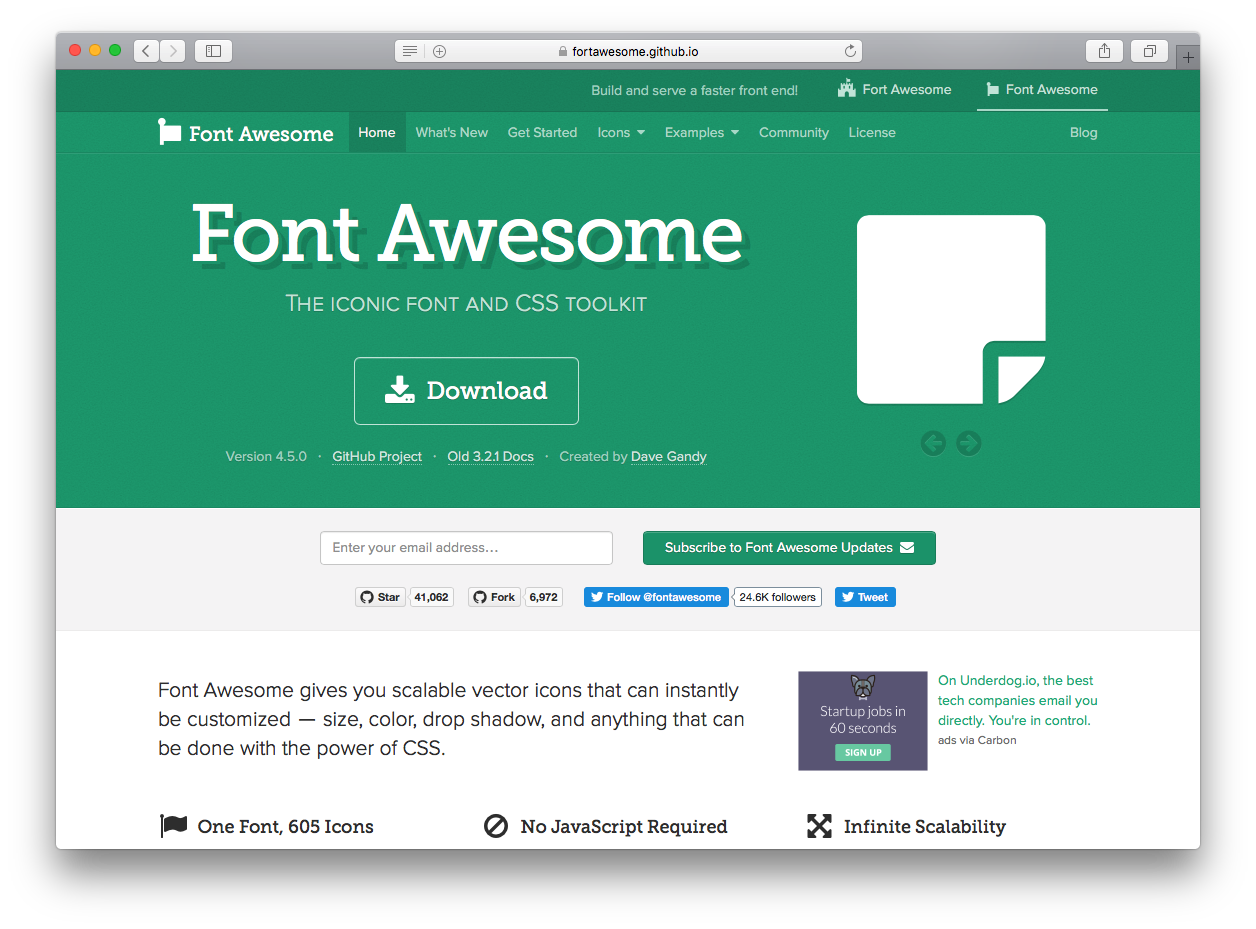

Screenshot of Font Awesome website

SVG Files


Unicode
Characters

WOFF, WOFF2, EOT,
TTF, OTF and/or SVG


@font-face {
  font-family: "IconFont";
  src: url("iconfont.eot");
  src: url("iconfont.eot#iefix") format("embedded-opentype"),
    url("iconfont.woff2") format("woff2"),
    url("iconfont.woff") format("woff"),
    url("iconfont.ttf") format("truetype"),
    url("iconfont.svg#iconfontregular") format("svg");
  font-weight: normal;
  font-style: normal;
}


.icon {
  display: inline-block;
  font: normal normal normal 16px/1 IconFont;
  font-size: inherit;
  text-rendering: auto;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}


.icon-add:before {
  content: "\f000";
}
.icon-arrow-up:before {
  content: "\f001";
}
.icon-arrow-down:before {
  content: "\f002";
}
.icon-arrow-right:before {
  content: "\f003";
}
.icon-arrow-left:before {
  content: "\f004";
}


.icon-bookmark:before {
  content: "\f005";
}
.icon-caret:before {
  content: "\f006";
}
.icon-cog:before {
  content: "\f007";
}
.icon-envelope:before {
  content: "\f008";
}
.icon-headphones:before {
  content: "\f009";
}


.icon-heart:before {
  content: "\f00a";
}
.icon-home:before {
  content: "\f00b";
}
.icon-power:before {
  content: "\f00c";
}
.icon-search:before {
  content: "\f00d";
}
.icon-x:before {
  content: "\f00e";
}


<span class="icon icon-foo"></span>

Screenshot of Stackicons website

Soon…

Unpronounceable.

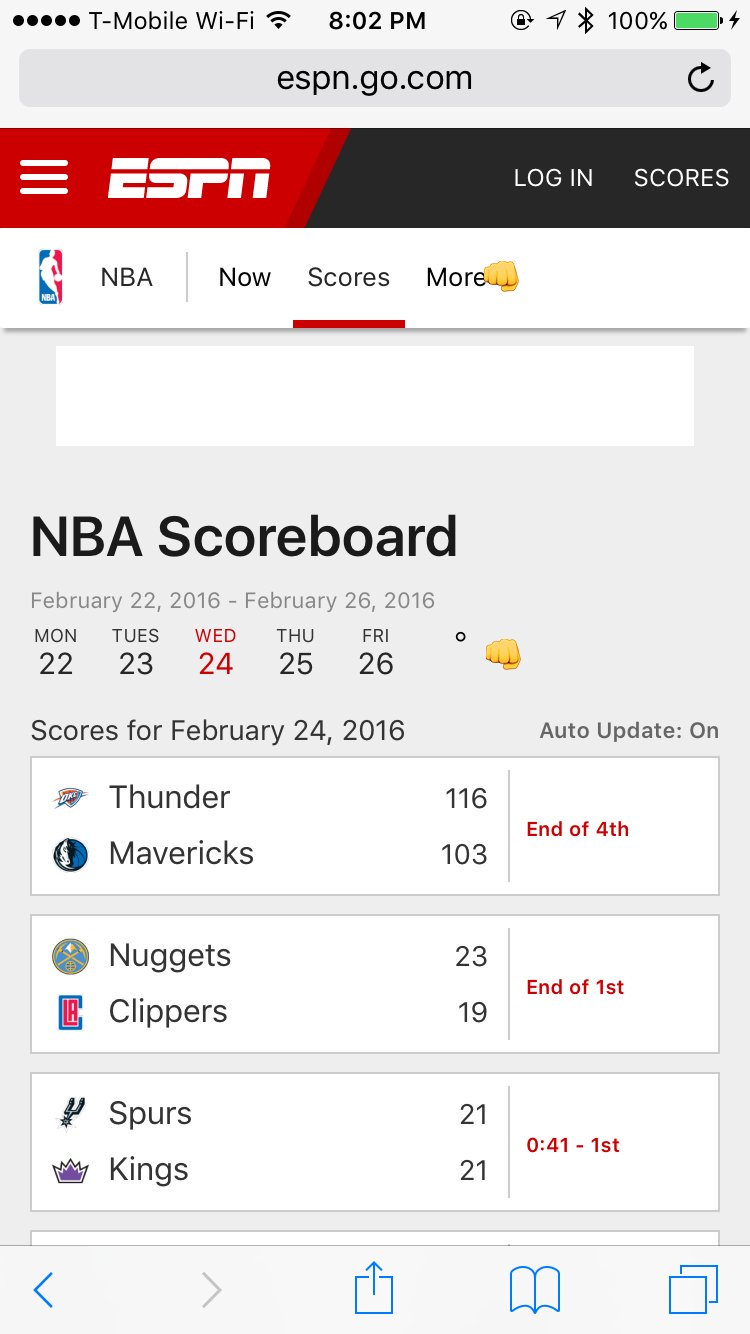

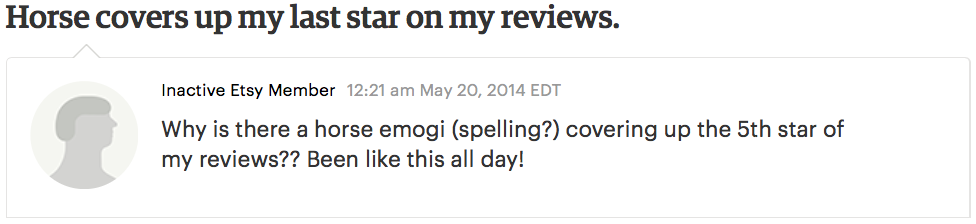

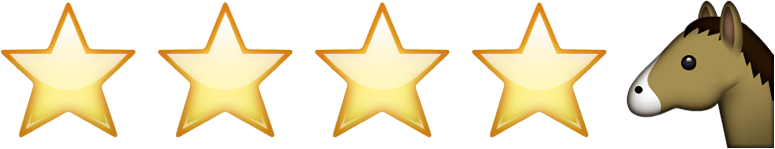

Mockup of classic Etsy icon font fail Screenshot of user complaint

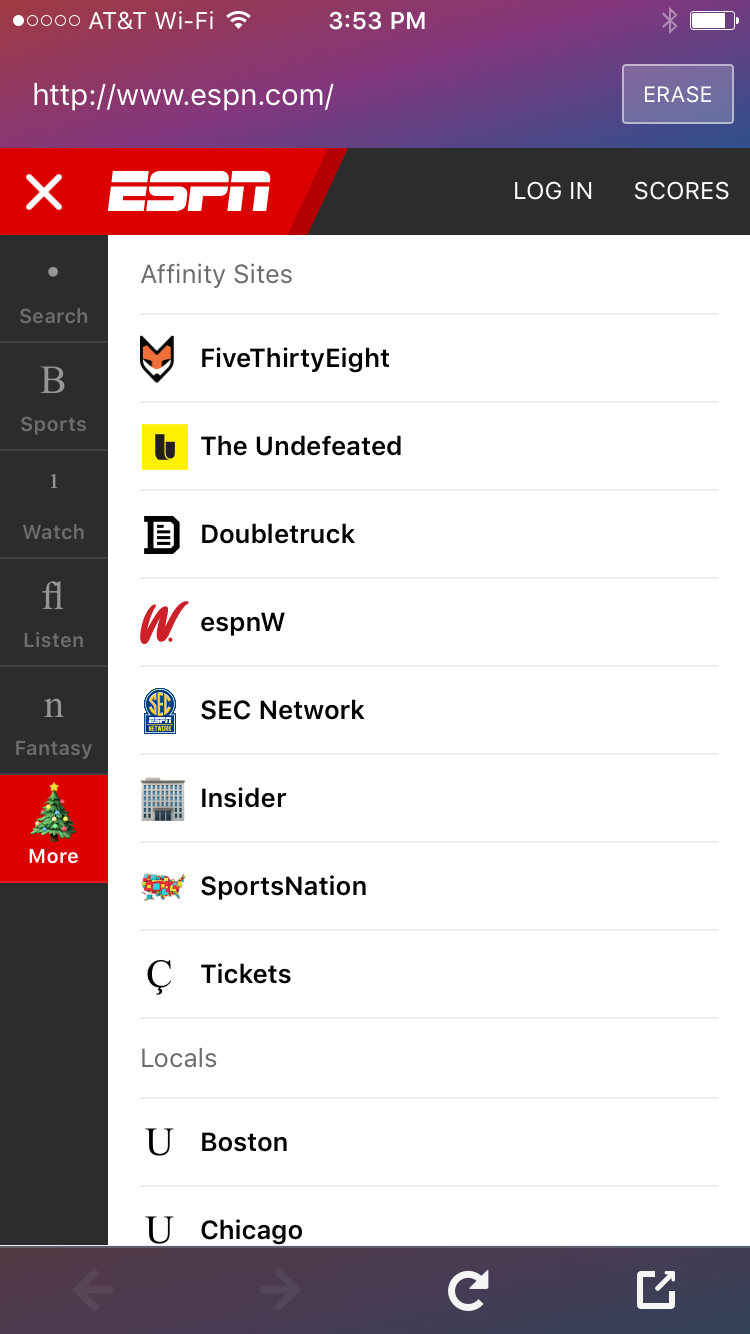

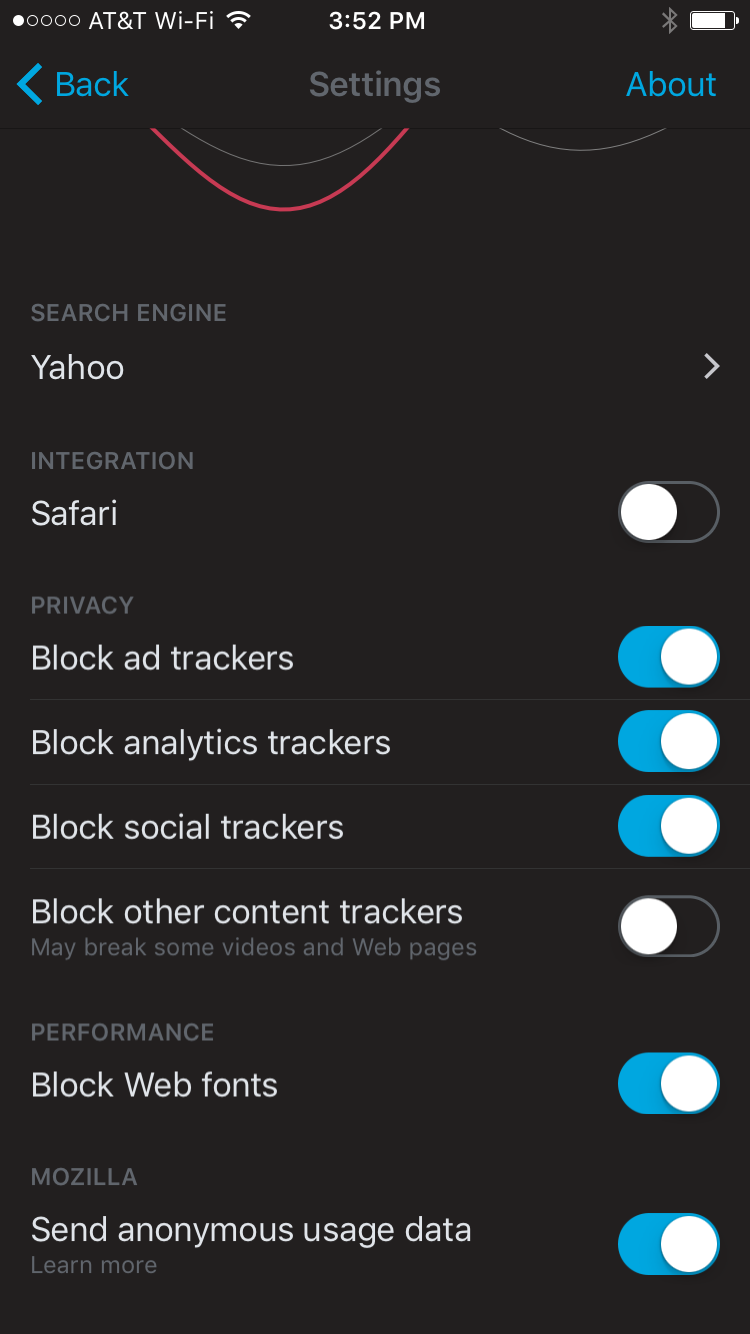

Screenshot of Firefox Focus 'settings' screen Screenshot of ESPN navigation in Firefox Focus with webfonts disabled

There’s already a better way…

…and it’s not even very new

1982

PostScript (Adobe) 1982 TrueType (Apple, Microsoft) 1991 OpenType (Microsoft, Adobe) 1994

1998

Screenshot of Internet Explorer 5
jpg

Large size, no alpha

gif

Few colors, poor alpha

png

Poor support

Bitmap

Vector

PostScript

Already supported by browsers

Developed for print

Encumbered by 16 years of history

A vector image format created specifically for the web

Web Schematics CCLRC
PGML Adobe, IBM, Netscape, Sun
VML Autodesk, HP, Macromedia, Microsoft
Hyper Graphics
Markup Language
Orange, PCSL, PRP
WebCGM Boeing, CCLRC, Inso, JISC, Xerox
DrawML Excosoft
W3C forms SVG Working Group 1998 SVG 1.0 Recommendation 2001 SVG 1.1 Recommendation 2003
Konqueror 2004 Opera, Gecko 2005 Webkit 2006 IE 2011

What is SVG?

“Scalable Vector Graphics”

A vector image format

An XML-based document format

A subset of HTML5

Adobe Illustrator Sketch Inkscape

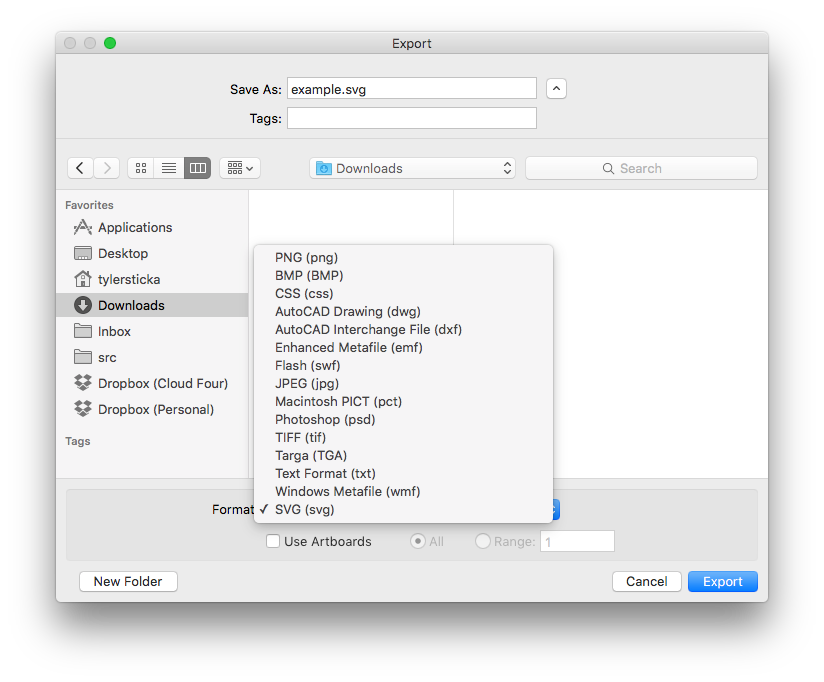

Screenshot of SVG export selection in Adobe Illustrator

<img src="example.svg" alt="...">


.example {
  background-image: url("example.svg");
}


<svg> ... </svg>


<object data="example.svg" type="image/svg+xml">
  <img src="fallback.png" alt="..."/>
</object>

Search icon in PNG format
PNG 368 bytes
gzipped 372 bytes
Search icon in SVG format
SVG 256 bytes
gzipped 201 bytes

SVG

97.8% (June 2017)

@font-face

95.3% (June 2017)

…can we do more?

jpg png swf
Search icon in PNG format

iVBORw0KGgoAAAANSUhEUgAAADAAAAAwCAMAAABg3Am1AAAAKl
BMVEVMaXEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAABqfk8+AAAADXRSTlMA7zCv32BQIBDPcI+fXsg3kA
AAAOhJREFUeNrVldsOhDAIRGlptRf5/99dEy+pOsRMNtlk51UP
A5RS+U6xabVVVVuUd+Vkg1J++X1KdlOaxFdRA9IijuZqUHV2/g
/mKECinPFTn+aVn3o6PVBWeoTLQ8sOUwX9OUuEbXj2ardf5KZl
T/NxXq717pGhQQDFlYAs4hgGm1/nql2iQPcGEu0Y6KC8OvYOd7
zKqC1Nb2a2rwAQR18AVEp00XRb6YOjR4MdPnq82QvEXtFGLgEL
kVkzmPAXmU9UlijKEXjdt4AJ/0GJkPCfLEj4+g9ChSWEJYQkVA
gCF+0TaqZRfqEPfwwidjiHyZkAAAAASUVORK5CYII=


<img src="…" alt=" (╯°□°)╯︵ ┻┻ ">


“Scalable Vector Graphics”

A vector image format

An XML-based document format

A subset of HTML5

<svg>

<rect/>

<circle/>

<line/>

</svg>

<svg>

<polyline/>

<polygon/>

<path/>

</svg>


<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24" width="24" height="24">
  <g fill="none" stroke="currentColor" stroke-linecap="round">
    <circle cx="9.5" cy="9.5" r="7.5" stroke-width="3"/>
    <line x1="16" y1="16" x2="21" y2="21" stroke-width="4"/>
  </g>
</svg>


Possibilities


.fave-icon {
  fill: currentColor;
}


.fave-icon-base {
  fill: none; stroke: currentColor;
}

.fave[aria-pressed="true"] .fave-icon-base {
  fill: #E041B0; stroke: none;
}

.fave-icon-highlight {
  fill: #F995D1; visibility: hidden;
}

.fave[aria-pressed="true"] .fave-icon-highlight {
  visibility: visible;
}


<svg>
  <style>
    /* defaults */
    @media all and (min-aspect-ratio: 3/1) {
      /* wide aspect ratio */
    }
  </style>
</svg>

90 70 50 30 10

<polyline points="130 250 280 130 …"/>
<circle cx="130" cy="250"/>
<circle cx="280" cy="130"/>
<!-- etc. -->

Splat!

<defs>
  <filter id="outline">
    <feMorphology operator="dilate" in="SourceAlpha" radius="4"/>
    <feComposite in="SourceGraphic"/>
  </filter>
</defs>
<text class="sfx" x="400" y="190" text-anchor="middle"
  dx="0, -12, -10, -16, -18" dy="0, 5, -10, 5, 0"
  filter="url(#outline)">Splat!</text>


Source: Dudley Storey


<svg>
  <defs>
    <clipPath id="cloud">
      <path d="…"/>
    </clipPath>
  </defs>
  <image xlink:href="foo.jpg" clip-path="url(#cloud)"
    width="200" height="200"/>
</svg>


<svg>
  <defs>
    <filter id="half-tone">
      <!-- effects, composites, etc. -->
    </filter>
  </defs>
  <image xlink:href="foo.jpg" filter="url(#half-tone)"
    width="200" height="200"/>
</svg>


Half-tone filter by Michael Mullany


@keyframes spin {
  to { transform: rotate(180deg); }
}

.spinner {
  transform-origin: 50px 50px;
  animation: spin 1.3s
    cubic-bezier(0.175, 0.885, 0.32, 1.275) infinite;
}


// Using GreenSock GSAP (https://greensock.com)
TweenMax.to(element, 1.3, {
  repeat: -1,
  transformOrigin: '50% 50%',
  rotation: 180,
  ease: Back.easeOut.config(1.8)
});


Alternatives: Anime, Velocity.js, Snap.svg, KUTE.js

Submit
SVG CSS HTML JS

The Future

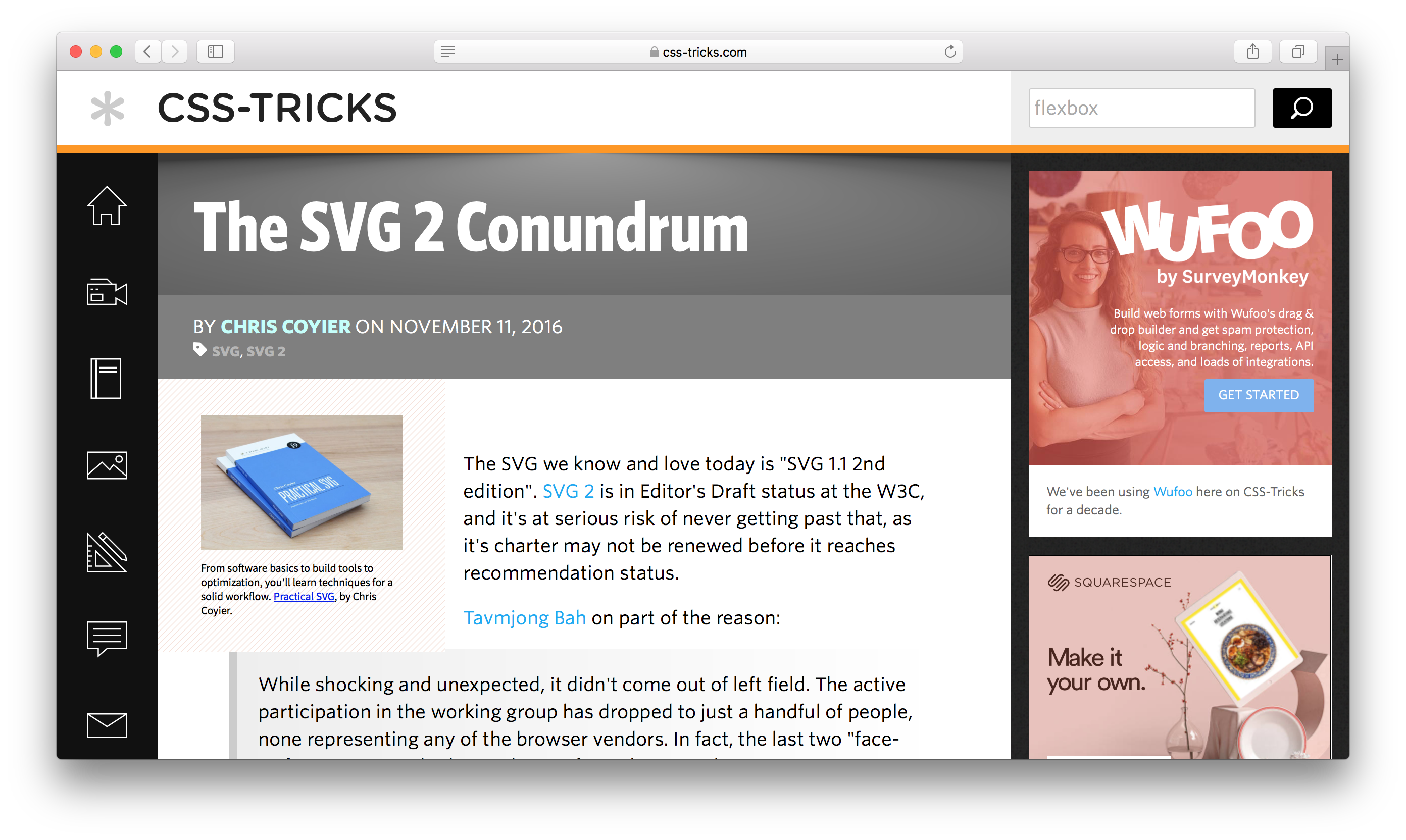

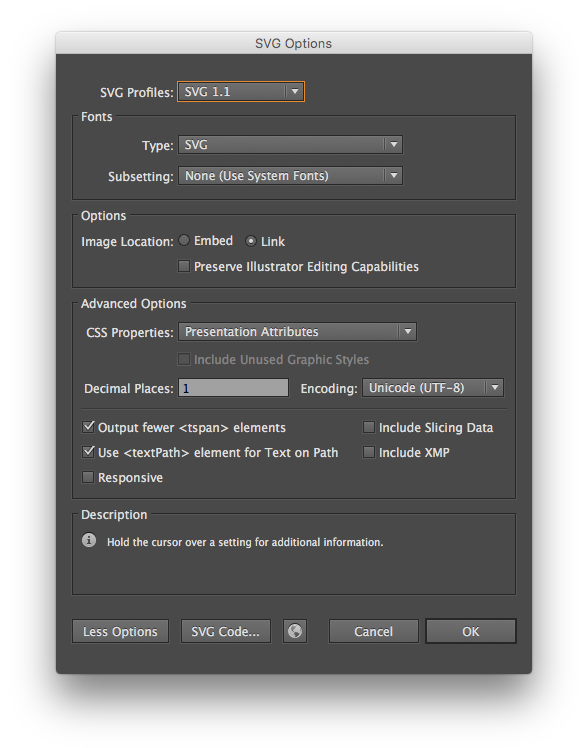

Traditional SVG export in Illustrator

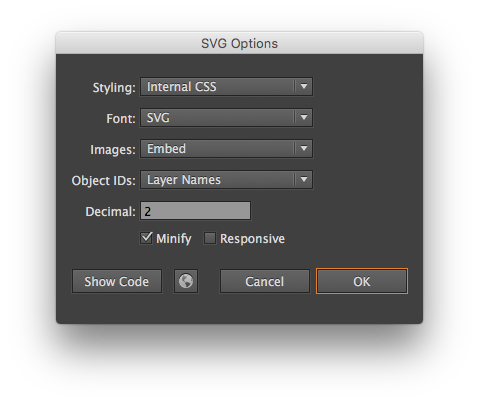

Nicer SVG export in Illustrator
CSS ShapesCandidate Recommendation Chrome Safari Opera
CSS MaskingCandidate Recommendation Firefox Chrome Safari Opera
CSS Filter EffectsWorking Draft Edge Firefox Chrome Safari Opera
Web AnimationsWorking Draft Firefox Chrome Opera

The Point

Lack of vector images

Icon fonts, Flash, crazy CSS shapes, etc.

SVG!

But SVG is hard…

Change is hard

SVG Files


<img src="my-icon.svg" alt="…">


<svg>
  <!-- icon data or reference -->
</svg>

But performance…

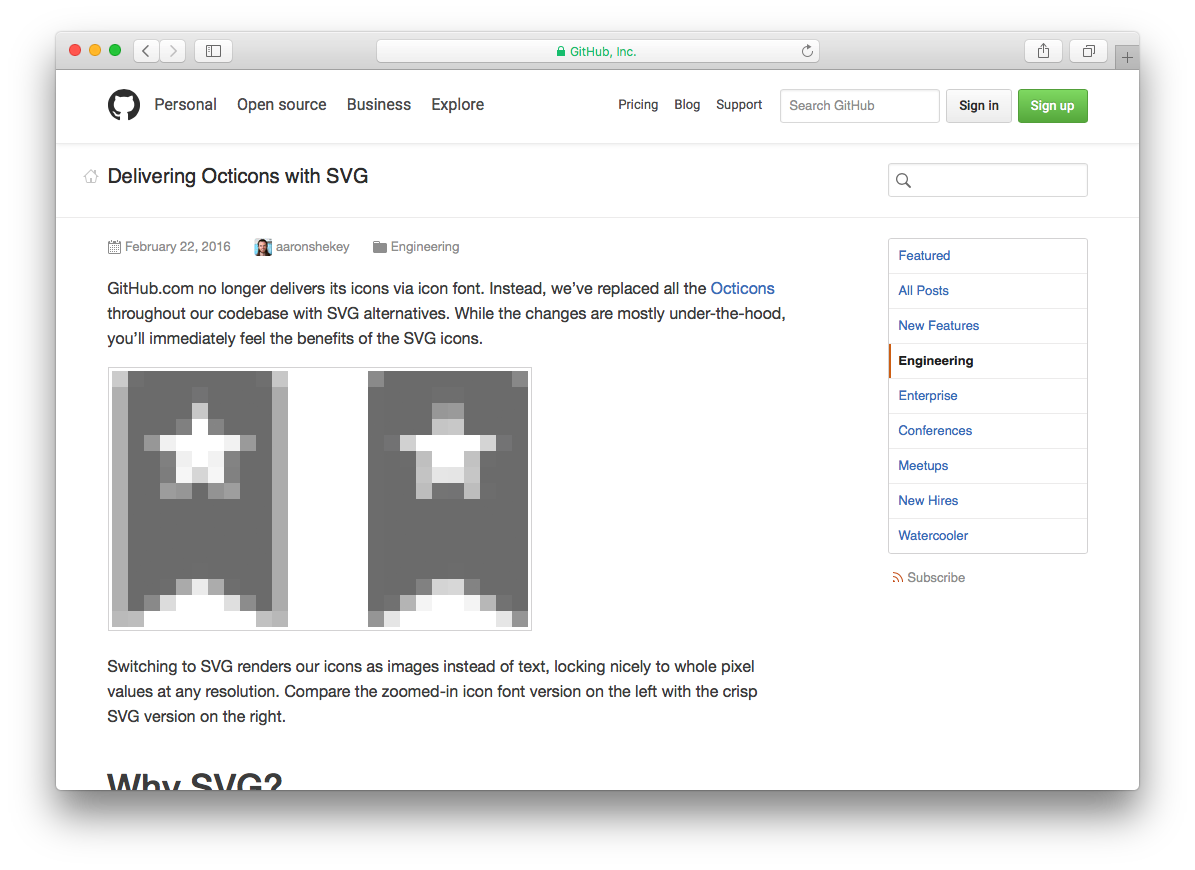

Screenshot of GitHub's SVG octicons blog post

We’ve found there were no adverse effects on pageload or performance when switching to SVG.

By switching from icon fonts, we can serve our icons more easily, more quickly, and more accessibly. And they look better. Enjoy.

I use icon fonts in Photoshop… My icons only look good with text-shadow… My Gruntfile is just the way I like it…

SVG is useful

SVG is accessible

SVG is powerful

SVG is responsive

SVG is the future

SVG is fun
